Grab Bar for Bathroom Stalls. ADA Compliant. 40" Straight Bar, 12” Deep. Mounts to One Wall. Two Adjustable Wall Braces. 1.5" Diameter. Satin or Peened. Snap Flange or Exposed Mount. Price Depends on Finish & Flange. #32023
Product Description
Grab Bars for Bathroom Stalls.
ADA compliant.

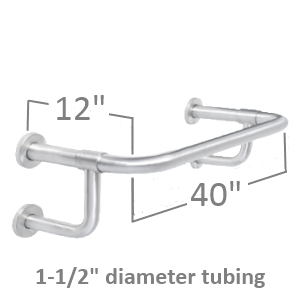

Made of 1-1/2” O.D. 18 gauge stainless steel tubing.
40" long (flange center to flange center).
Extends 12” from and mounts to 1 wall
Two adjustable wall braces attach to the wall 6” from the grab bar (flange center to flange center) and extend 8” from the wall.
Please choose type of finish (satin or peened) and type of flange (concealed "snap" flange or exposed flange) above.
When properly installed, these bars will support loads up to 250 pounds.
Snap flange is made of 3" diameter, 3/8" deep 22 ga. stainless steel. Dimples secure the flange over the mounting plate.
Exposed flange is made of 3" 11 ga. stainless steel that is welded to the bar to form one-piece construction. Each flange has 3 mounting points, 1/4" diameter.
